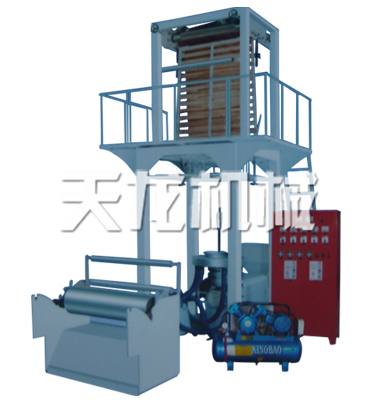

特点：用于吹制高低压聚乙稀，产品广泛用于复合膜，包装膜，农业复盖膜，纺织品，服装袋等包装；主电机采用变频调节器，增加了主机调速的稳定性，并可节电30%，螺杆料筒采用38铬钼铝。经氮化处理，牵引机架采用升降式，不管吹大、小规格薄膜均能合其冷却效果达到：
Feature:
It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag or film for fextile and clothing and other packing material.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.The screw and material barrel adopt 38 chrome –molydbenum aluminum which has been nitrogen treated and the tractiom frame adopts lifting type.No matter what size the film is,big or small ,it can achieve effect of cooling.
主要技术参数（Main Teachnical Parameter）
Main Technical Variables ；
|
型号：Model
|
TL-A50
|
TL-A55
|
TL-A60
|
TL-A65
|
TL-A75
|
|
螺杆直径
Screw Diameter
|
ф50
|
ф55
|
ф60
|
ф65
|
ф75
|
|
螺杆长径比
Screw Ratio(L/D)
|
28：1
|
28：1
|
28：1
|
28：1
|
28：1
|
|
螺杆转速
Screw Speed
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
|
主机功率
Power of Main Motor
|
11
|
15
|
18.5
|
22
|
30
|
|
挤出量
Main Output (kg/h)
|
30
|
40
|
60
|
70
|
100
|
|
薄膜折径
Max.Folding Width of Film (mm)
|
600mm
|
800mm
|
1000mm
|
1200mm
|
1500mm
|
|
薄膜单面厚度(mm)
Single-side Thickness of Film
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
|
总功率
Total Power (kw)
|
22
|
26
|
30
|
36
|
46
|
|
机重 (T)
Weight of Machine
|
2
|
2.3
|
2.6
|
3
|
4
|
|
外形尺寸(mm)
Overall Dimension
|
4000×1800
×3600
|
4200×2000
×4000
|
4600×2300
×4200
|
4800×2500
×4500
|
5200×2800
×5000
|
|
