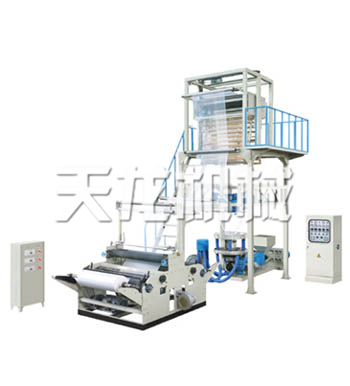

For blowing high-low pressure polyethylene, the product is widely used in composite film, packaging film, wax covering agriculture, textiles, clothing or bag packaging film; the main use of variable frequency motor speed regulator, an increase of the stability of the host governor, And section 30% of the electronics industry, using screw bowl 38 Cr-Mo aluminum, nitrogen processing, use of traction frame-off and landing, regardless of wind, small film specifications so that it can achieve cooling effect; double-double-A post-mortem Winding: 3 electric moment, to maintain the appropriate tension so neatly rolling, roll-for convenience; head spin: make the film thickness uniformity, to close Juanmian the formation of a more even more, especially for complex film, print film .
The main technical parameters
Model TL-B50 TL-B55 TL-B65 TL-B65-1 TL-B75 -
Screw diameter ф50 ф55 ф60 ф65 ф75
Screw 28:1 aspect ratio 28:1 28:1 28:1 28:1
Screw speed 10-100r/min 10-100r/min 10-100r/min 10-100r/min 10-100r/min
Host Power 11 15 15-18.5 18.5-22 30
The largest amount of extrusion (kg / h) 35 50 65 80 120
The biggest film break diameter (mm) 600mm 800mm 1000mm 1200mm 1500mm
Single-film thickness (mm) 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
The total power (kw) 22 26 30 36 46
Machine weight (T) 2 2.3 2.6 3 4
Size (mm) 4000 × 1800 × 3600 4200 × 2000 × 4000 4600 × 2300 × 4200 4800 × 2500 × 4500 5200 × 2800 × 5000 |
